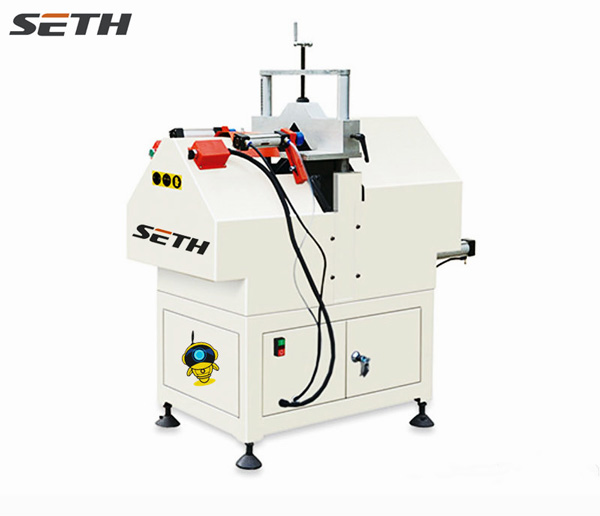

This machine is used for cutting 90° V - shaped groove of aluminum and upvc profile.
LJVW-65 V-shaped saw for aluminum-plastic doors and windows is used to cut 90 ° V-shaped grooves of aluminum-plastic profiles.
The material thickness is 0-120mm and the gate is cut at one time.
It is an ideal equipment for aluminum-plastic doors and windows processing industry.
Main specifications and technical parameters:
Cutting depth: 0-65mm
Cutting thickness: 0-120mm
Saw blade speed: 2800r / min
Feed speed: stepless speed regulation
Saw blade specification: outer diameter Ф 300mm inner diameter Ф 30mm( Ф 40mm)
Gas consumption: 80L / min
Working positioning length: 1700mm
|
Power supply |
380V/50HZ as clients’ requirement |
|
Input power |
2.2Kw |
|
Motor rotary speed |
2800r/min |
|
Working pressure |
0.4~0.6Mpa |
|
Cutting width |
120mm |
|
Cutting height |
300~1700mm |
|
Overall dimension |
1350*500*1350mm |
|
weight |
220kgs |
