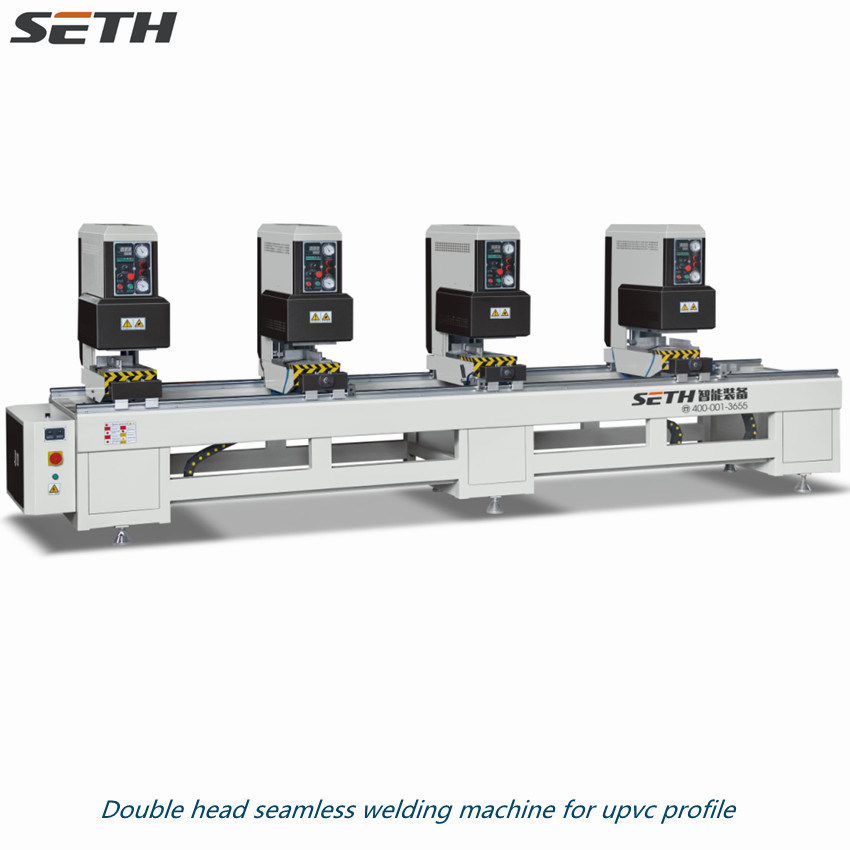

Hot Selling PVC Window Door Corner Welding Machine

1. Used for welding and machining of PVC door and window.It can processing all kinds of shapes.
2. The work type is swing-out,it adopts pneumatic transmission to clamp and cut the profiles.
3. The structure of the machine is simple and light,it is easy to operate and has high precision.
4. PLC control, pneumatic drive, simple operation, stable capability.
5. Weld four point, three point, two point, single point, transom, cross -transom and special angle.
6. Four heads can work simultaneously, individually and combinatively.
  • Detailed Description

18

Technical Parameter:

Ø Input voltage

380V/50Hz

Ø Input power

4.5Kw

Ø Air pressure

0.6~0.8Mpa

Ø Air consumption

280L/min

Ø Welding height

25~100/120mm

Ø Welding width

120mm

Ø Welding range

400~4500mm

Ø Overall dimension

5260X980X1760mm
