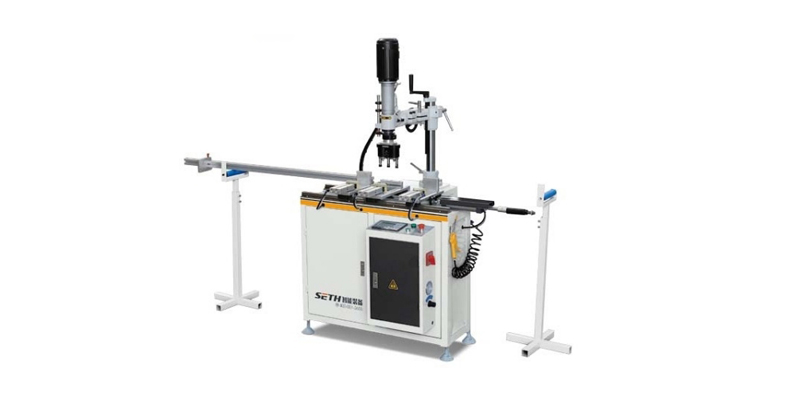

LZK-CNC-150
Such as the center stile of aluminum-plastic profiles and various holes of louvers.
Numerical control system control, simple operation, accurate processing and high efficiency.
This machine replaces many complicated processes such as manual marking and pistol drilling, and improves the machining quality and work efficiency several times.
Drilling about 600 square meters every day greatly reduces the labor intensity of workers, and the drilling spacing and speed can be adjusted at will, so it is suitable for various profiles.
| Power supply | 380V/50Hz |
| Motor power | 2×1.5kW |
| Operation air pressure | 0.6~0.8MPa |
| Gas consumption | 30L/min |
| No.of power-drill | 8 |
| Drill speed | 1400r/min |
| Machining transverse length | 300~2300mm |
| Feed speed | 0~3m/min |
| Overall dimension | 4200×1300×750mm |
| Weight | About 400kg |
