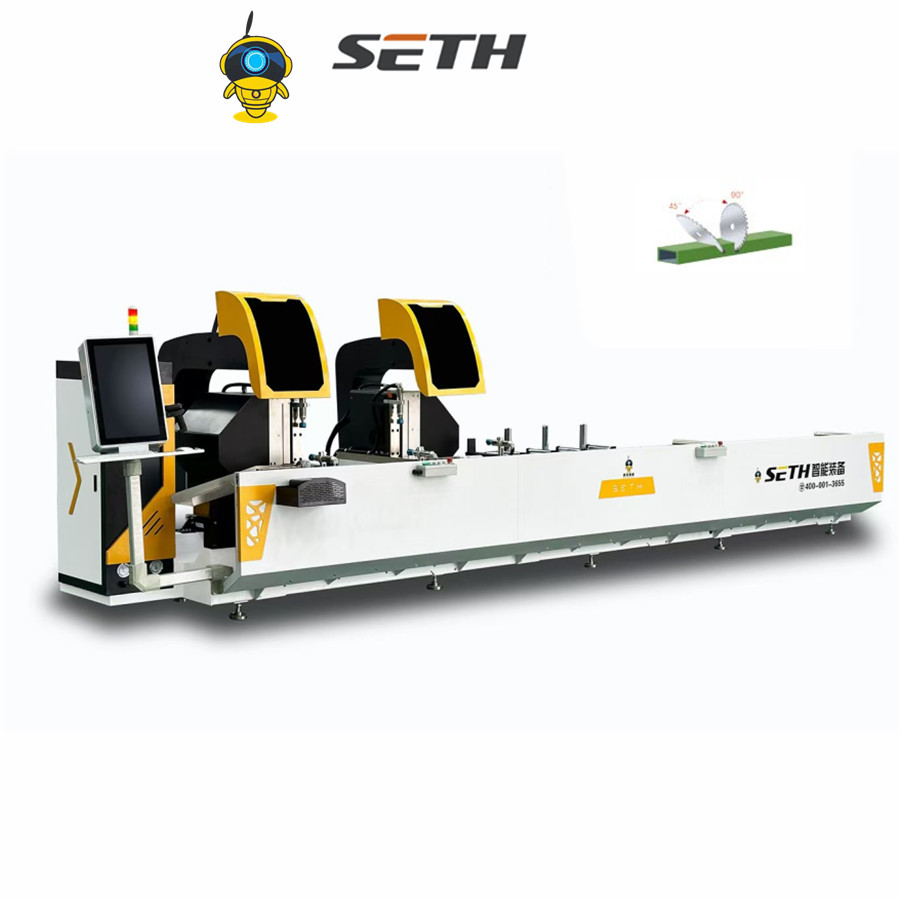

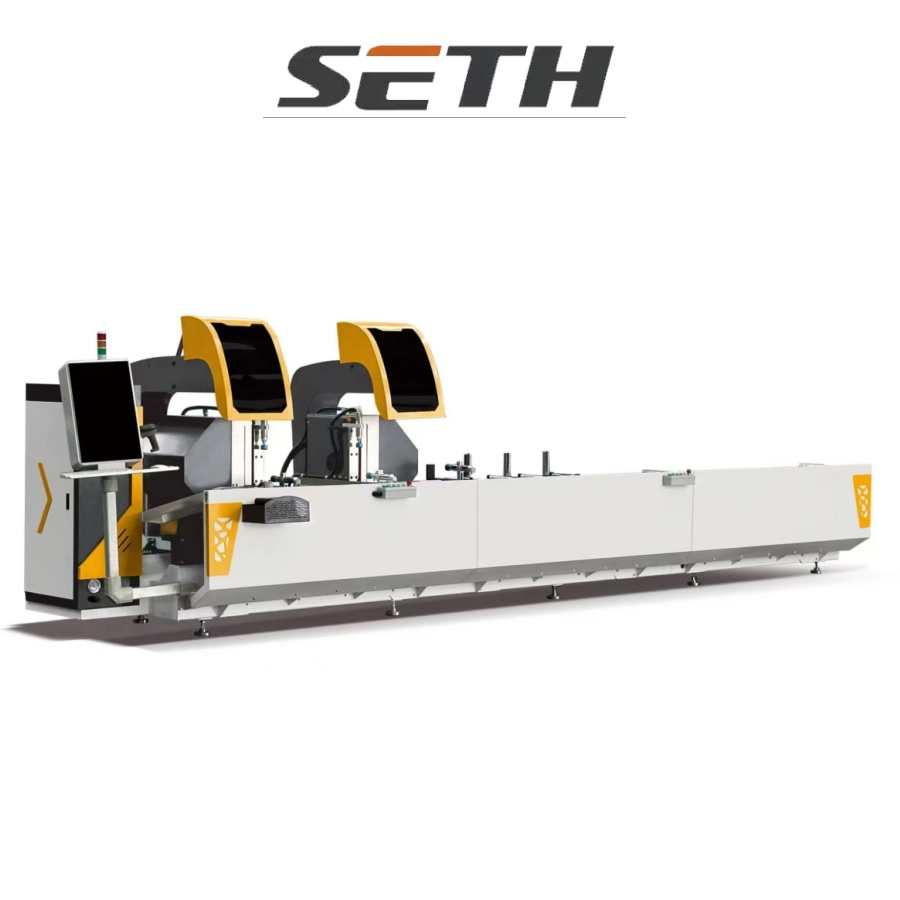

● Mainly used for cutting industrial aluminum profiles, PVC profiles, aluminum doors and windows, curtain wall materials.
● There are no qualified workers to operate, solve the difficulty of recruiting workers in the factory, label printing function, error prevention function: the profile error exceeds the range of non-cutting.

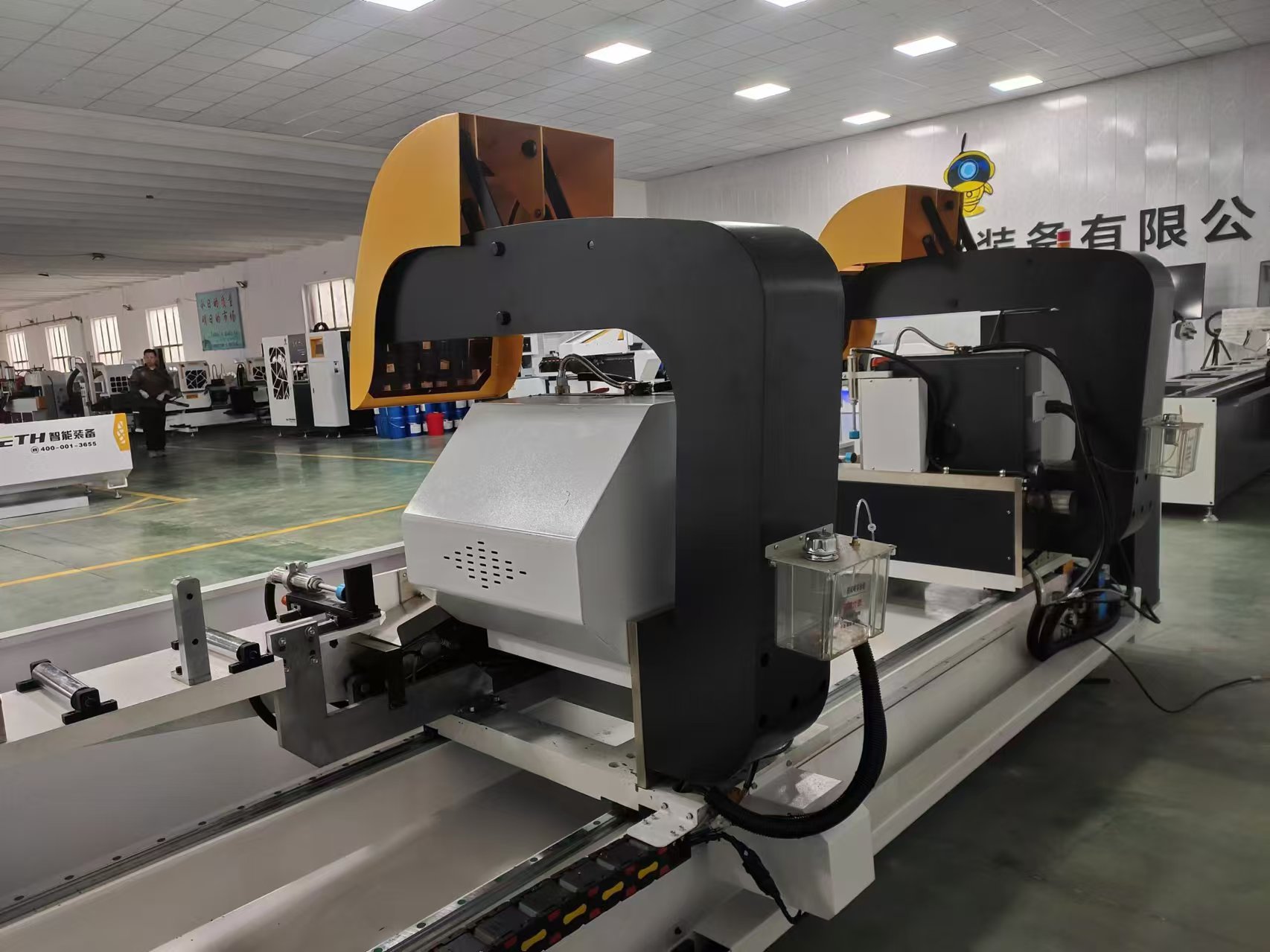

● High precision, integrated casting table, integrated spindle directly connected to motor, integrated gas-liquid damping cylinder, T1 and T2 heads located on integrated guide rails.
● Supports multiple data import modes: Internet, LAN, U disk, Bluetooth, manual input, etc. It can realize data coupling of common optimization software in the market, New Gel, Changfeng, Chuangying
● Environmental protection function, unique chip removal and dust suction design, 70% dust suction rate, clean site, reduce cleaning frequency and improve work efficiency.
● Equipped with patented rotating lifting support to avoid cutting error caused by intermediate sagging and equipped with movable profile support.
● The latest arc cutting technology, the sawing cutting section is safer, faster and more reliable.
|
Power supply |
380v 50hz |
|
Motor saw head |
2 × 3 KW/3000r/min |
|
Working pressure |
0.6 ~ 0.8 MPa |
|
Air consumption |
60L/min |
|
Cutting length |
Maximum 5000mm Minimum 280mm (Minimum 200mm for cut-off function) |
|
Cutting width |
150mm Max |
|
Maximum cutting slope |
45 ° 150 × 170 mm 90 ° 150 × 345 mm |
|
Maximum pipe cutting |
150 x 200 mm |
|
Cutting angle |
45 Degree 90 Degree |
|
Feed speed |
Continuous survival 0-4m/min |
|
Saw Blade Specification |
Ø 500 × Ø 30 × 4.4 × Z120 |
|
Dimensions |
6550 × 1300 × 1800 mm |
|
Weight |
2000kg |
|
Repeated fixed length precision |
≤ 0, 1 mm |
|
Section cutting angle margin |
± 3’ |
|
Flatness of cutting contour |
≤ 0. 02m |
|
Cutting profile roughness |
Ra 12.5 μm |
