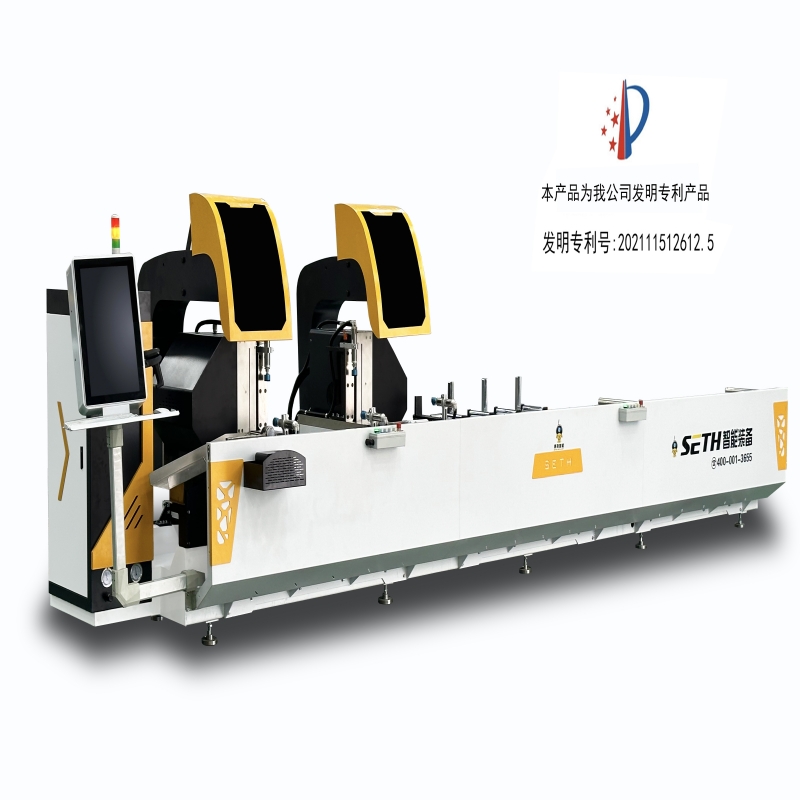

Seth Mirror Curve Precision Cutting Saw

Improve cutting efficiency, reduce operational difficulty, improve accuracy, and ensure operator safety。
  • Detailed Description

☆ Mainly used for cutting industrial aluminum profiles, PVC profiles, aluminum doors and Windows,
   curtain wall materials.
☆ Operation without skilled workers, solve the factory recruitment difficulties, label printing function,
   error prevention function: profile error beyond the range of no cutting.

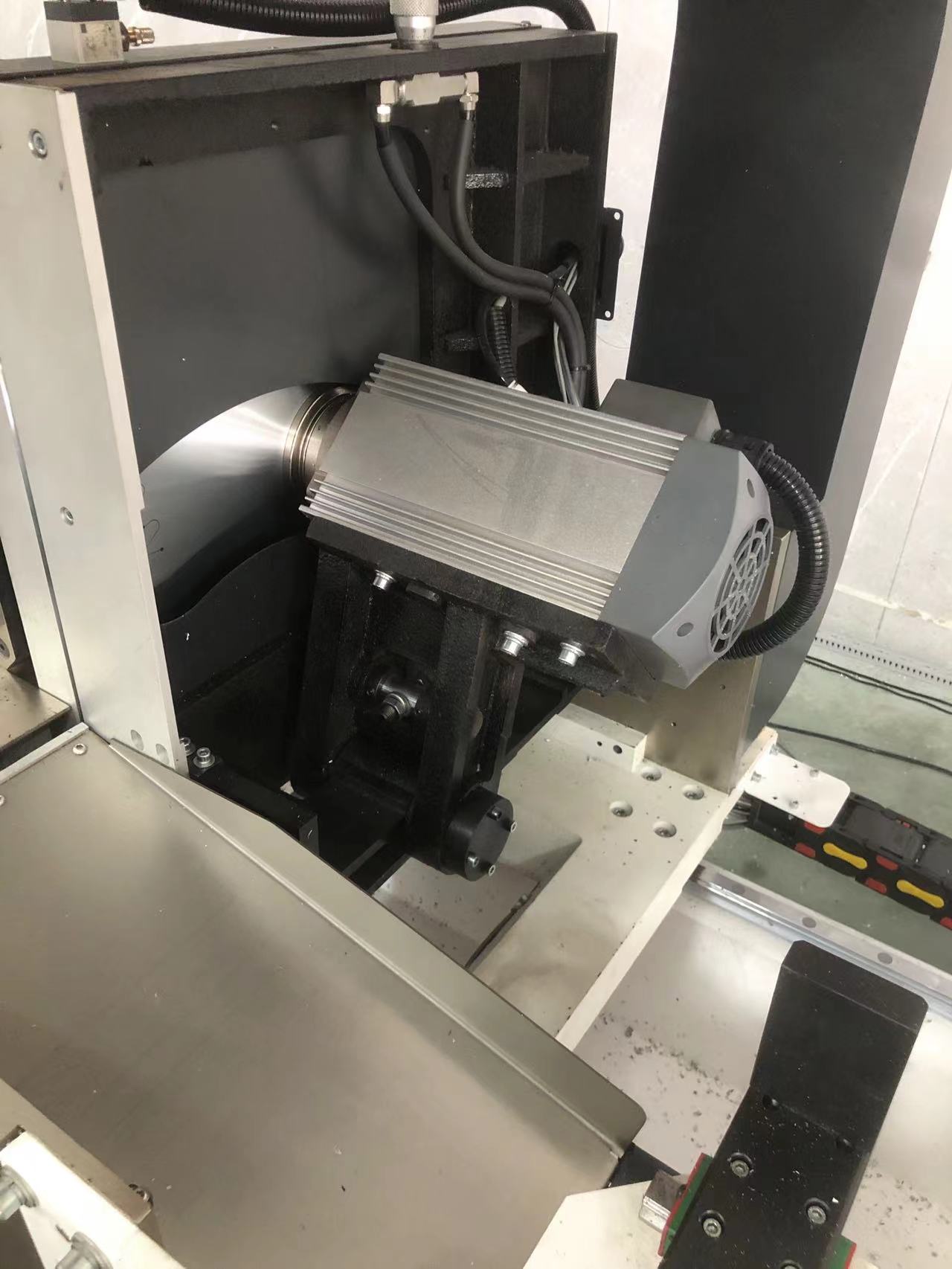

☆ High-precision, integrated casting workbench, integrated spindle directly connected motor,

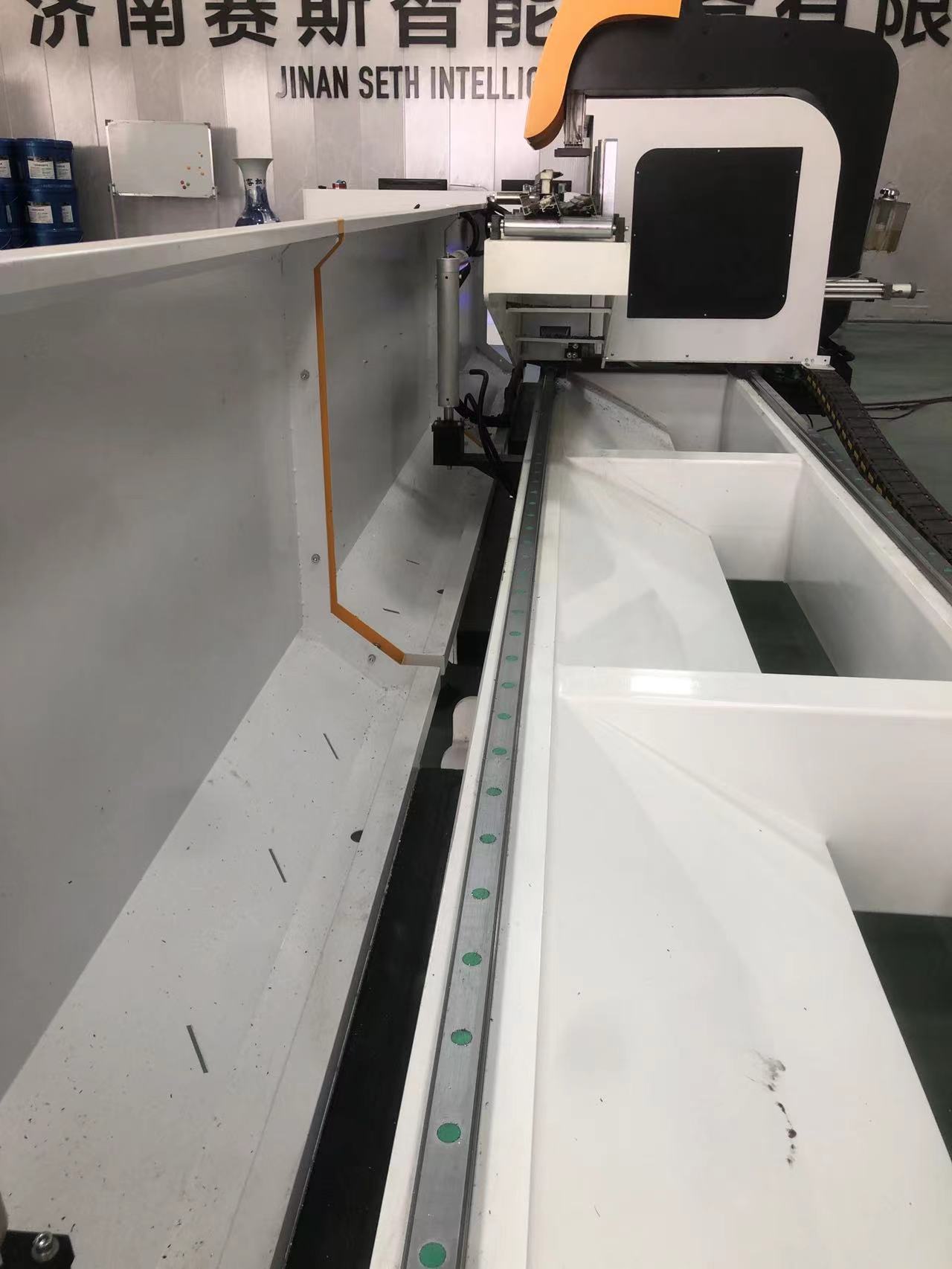

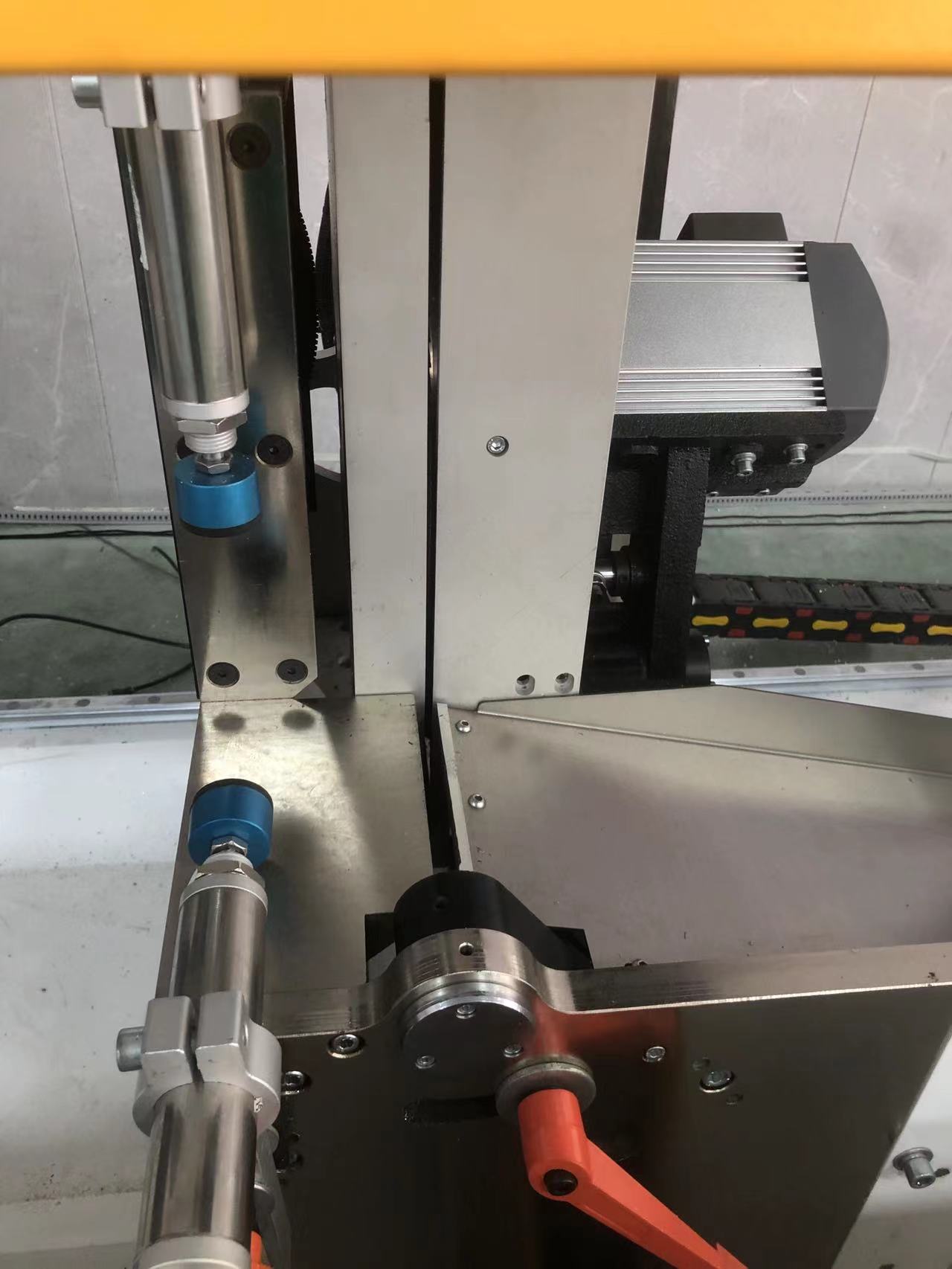

    integrated air-liquid damping cylinder, T1, T2 heads are located on the integrated guide rail.

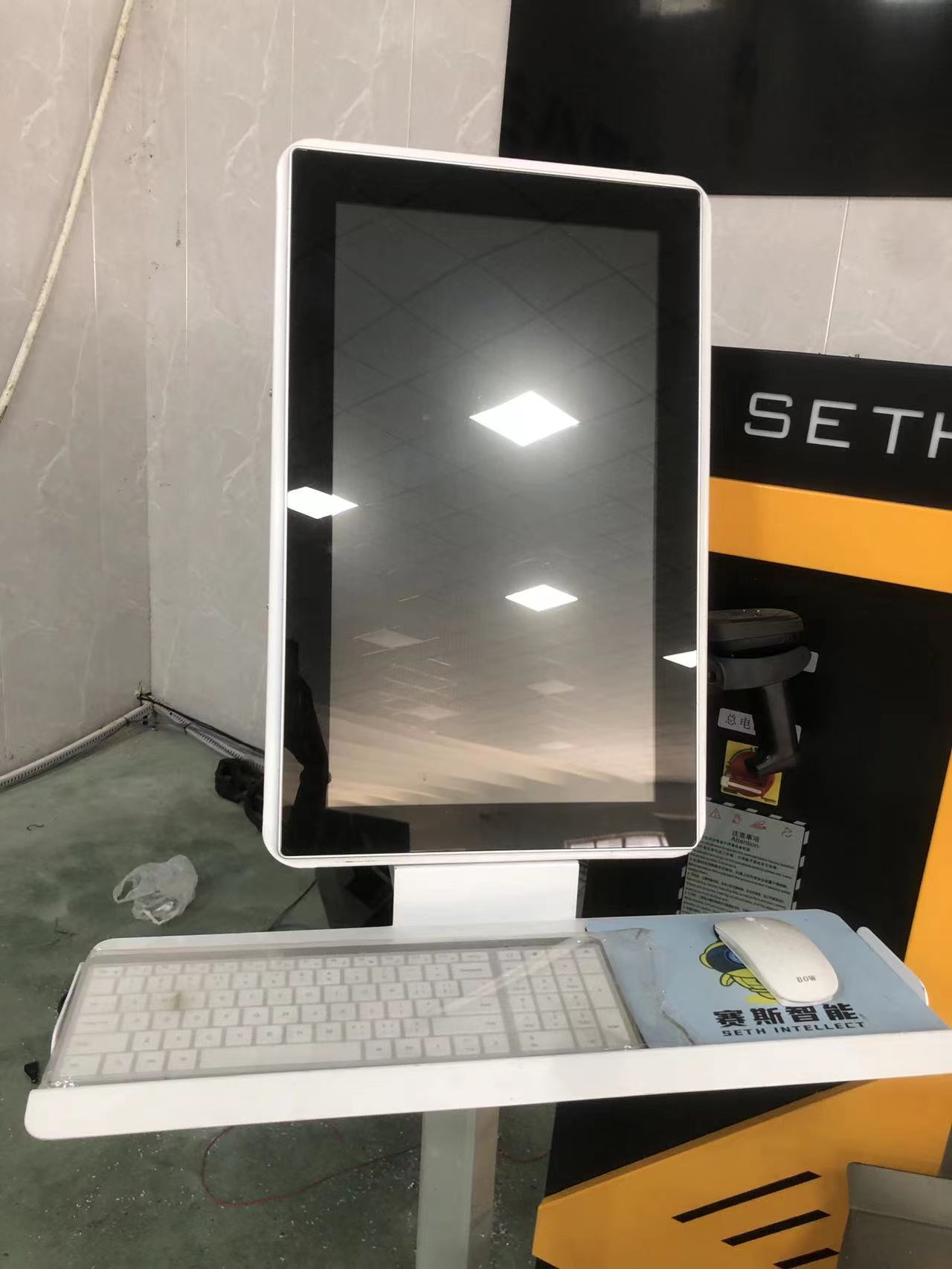

☆ Supports multiple data import modes:Internet, LAN, U disk, Bluetooth, manual input, etc.
    Can realize the market common optimization software data docking.
☆  Environmental protection function, unique chip removal, vacuuming design,
    vacuuming rate of 70%, clean site, reduce cleaning frequency, improve work efficiency.
☆ It is equipped with patented rotary lifting bracket to avoid cutting error caused by middle droop,
   and equipped with movable profile bracket.
☆ The latest arc cutting technology, sawing section is safer, faster and more reliable.

Basic Info.

Model NO. SETH-CNC-500*5000-FOM
Automatic Grade Automatic
Voltage 380V
Saw Blade Specification ø500 × ø30 × 4.4 Z120
Max.Square Pipe Cutting 150X200mm
Flatness of Cutting Profile ≤ 0.2mm
Weight 2000kg
Air Supply 60L/Min
Cutting Width Max.150mm
Working Pressure 0.6-0.8MPa
Transport Package Wooden Box
Trademark SETH
HS Code 846150009



Certification ISO, CE, SGS
CNC or Not CNC
Feeding Speed 0-4m/Min
Cutting Angle 90°, 45°
Cutting Angle Tolerance ±3 ′
Repetitive Fixed-Length Accuracy ≤ 0.1mm
Cutting Length 280-5000mm(Min 200mm)
Max.Cutting Slope 45° (150X170mm)T90° (135X345mm)
Saw Head Motor 2X3.0kw 3000r/Min
Powr 380V/50Hz
Specification 6550X1300X1800mm
Origin Jinan
Production Capacity

60000 Square Meters/Years


 Packaging & Delivery
Package Size 5800.00cm * 1800.00cm * 1600.00cm
Package Gross Weight 2000.000kg
