Features:
1. Adopted imported CNC system, It can achieve various profile automatic cutting off in right size
2. Imported Ball Screw control head's motion, and the two saw heads are adjustable
3. Several profile processing dimensions can be input in one time and make continuous cuttin
4. Imported high hardness diamond saw blade give accurate processing and high-endurance

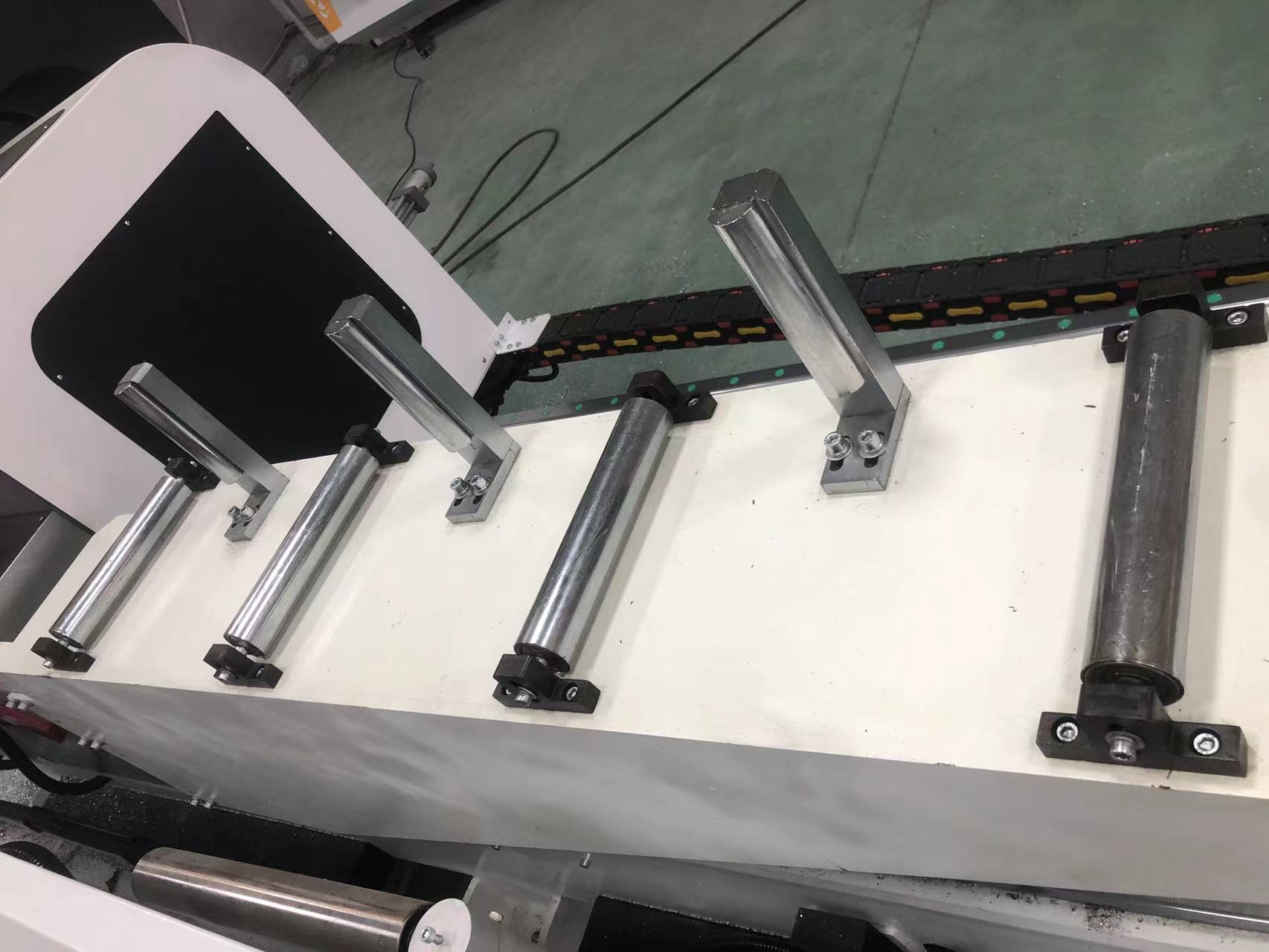

5. The feeding system adopts the imported linear guide pair with high accuracy and stability.
6.Nselection of profiles, no need to measure material height.
Parameters:
|
Model |
LJZ2Z-CNC-550x4300 |
|
Voltage |
380V/50HZ |
|
Power |
3.0KWx2 |
|
Saw Blade Diameter |
φ550x4.4xφ30 Z=144 |
|
Air Pressure |
0.6-0.8Mpa |
|
Cutting Angle |
45° |
|
Cutting Length |
Max.4300, Min.400mm |
|
Cutting Width |
180mm |
|
Cutting Height |
145mm |
|
Dimension |
5800x1800x1500mm |
