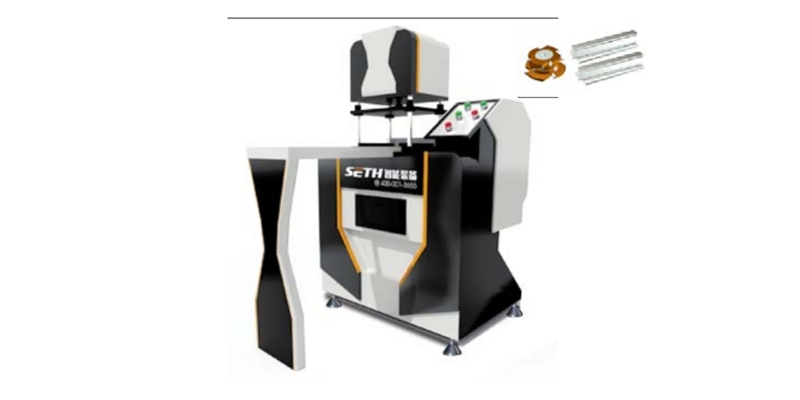

LXD-200A
It's miles appropriate for forming various give up grooves of aluminum profiles.
Excessive-precision spindle ensures machining accuracy.
Computerized feeding, low exertions intensity.
The workbench can be adjusted up and down, making it handy to regulate the knife.
Linear bearing ok inematic pair is used for slicing device feeding, which makes the running overall performance solid.
|
Power supply |
380V/50Hz |
|
Rating power
|
2.2kW |
|
Milling cutter rotary speed
|
2800r/min
|
|
Air consumption |
80L/min |
|
Profile height |
30~120mm |
|
Profile width |
20~120mm |
|
Overall dimension |
8500×740×1280mm |
|
Weight |
About 200kg |
