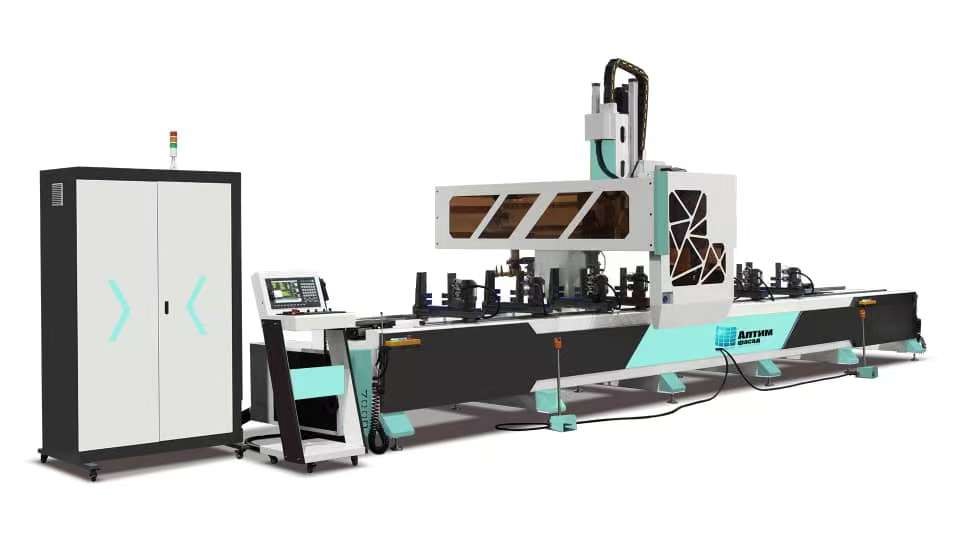

(1) Using the high-speed electric spindle imported from Italy, it can complete the processing of any Angle in ± 90° , with high work efficiency.
(2) Frame: There is system of automatic lubrication of linear guides and ball screws.
(3) Spindle: Power 18+-. Water cooling. And definitely with an encoder that can cut the thread.
(4) add a coolant supply system to the cutting area.
(5) 12-station tool library, dual cutting inserts, automatic blade change, automatic processing.
(6) 10-Tool Clamping Station automatic move.
(7) The frequency converter should be 50% more powerful than the spindle, that's the minimum.
|
X-axis longitudinal itinerary / Продольный маршрут по оси X |
10000mm |
|
Y axis longitudinal itinerary / Продольный маршрут по оси Y |
1300mm |
|
Z axis longitudinal itinerary / Продольный маршрут по оси Z |
550mm |
|
X axis operation speed / Скорость работы по оси X |
0-80m/min |
|
Y axis operation speed / Скорость работы по оси Y |
0-30m/min |
|
Z axis operation speed / Скорость работы по оси Z |
0-20m/min |
|
main shaft speed / частота вращения главного вала |
0-24000rpm |
|
Spindle power / Мощность шпинделя |
18.00KW water cooling spindle with Encoder |
|
Spindle rotation range / Диапазон вращения шпинделя |
-90°~0°~+90° |
|
|
tool magazine / магазин для инструментов |
12 t o o l s |
Collects and tool holder HSK-F63 |
|
Tool maximum mounting length / Максимальная установочная длина инструмента |
165mm |
|
|
Total installed power / Общая установленная мощность |
23KW |
|
|
Clamp station / Зажимная станция |
10 |
|
|
Processing size range / Диапазон обрабатываемых размеров |
650 * 250 * 1 0 0 00mm (above) 435 * 250 * 1 0 0 00mm (side) |
|
|
outline dimension / размер контура |
13000*2350*2550mm |
|
|
Weight / вес |
About 8 5 00.00 Kg |
|
