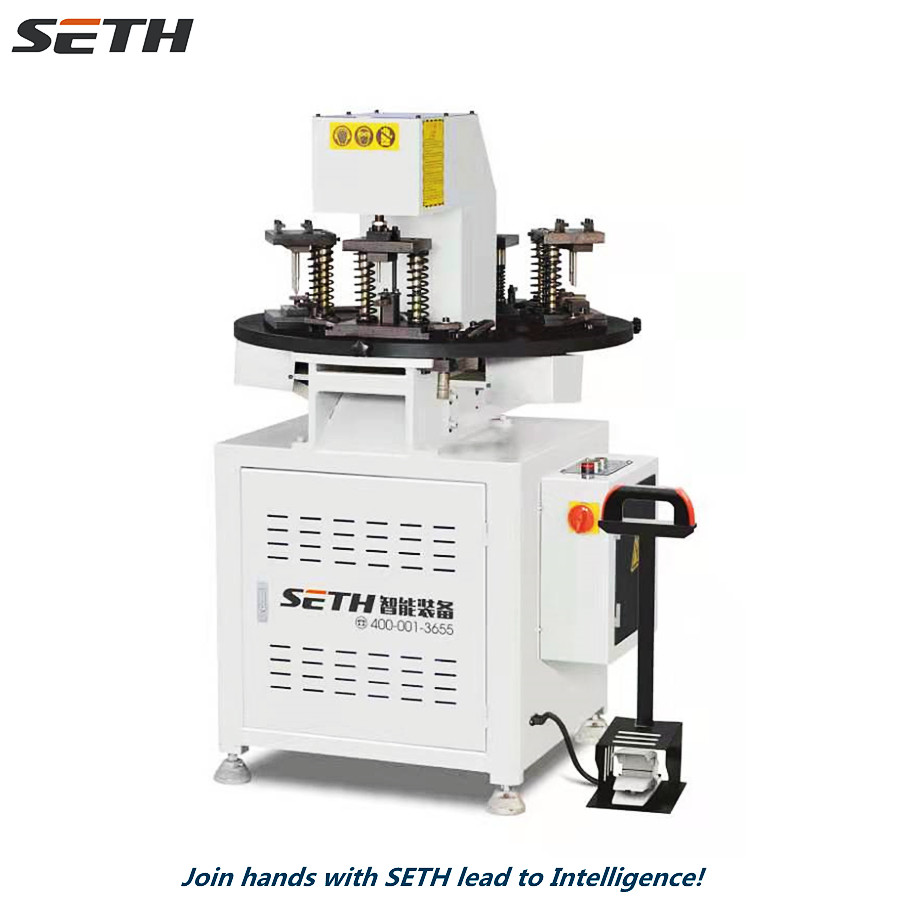

Aluminum Profile Heavy Duty Six Station Hydraulic Punching Machine

Equipment features:
This machine is suitable for aluminum profile special equipment.
The hydraulic system provides angular power, large punch and riveting force, fast speed and smooth operation.

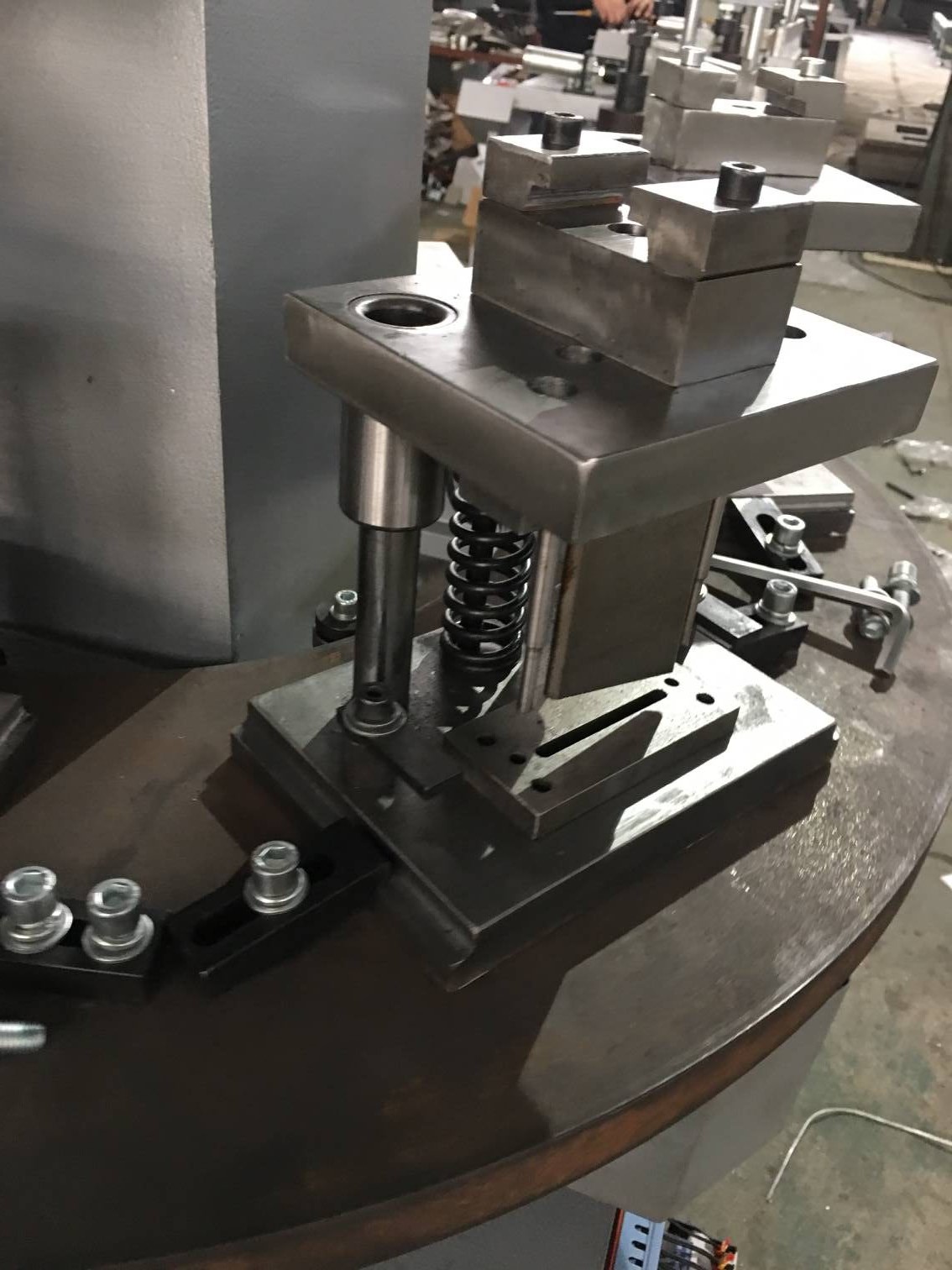

The body can hold 6 sets of different grinding tools simultaneously.
Designed for punching and cutting doors and Windows handle hole, glue injection hole, drain hole, Angle, pin, connecting rod, etc.
  • Detailed Description

² power:380V50Hz

² Input power:2.2KW

² Rated oil pump pressure:20Mpa

² nominal pressure:40KN

² Punching stroke:30MM

² capacity of tank:30L

² Oil pump dimension:6寸

² Overall dimension:1000*1100*1600mm(L*W*H)

weight:650Kg
