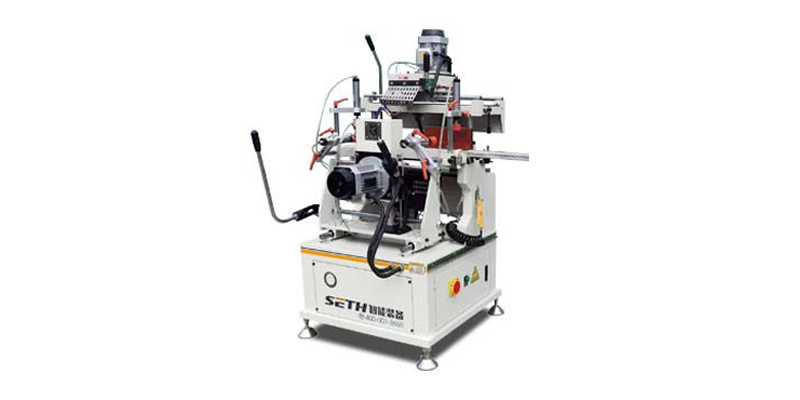

LJXG-300*150
Used for copying all kinds of holes, tenons and grooves, running water troughs, etc. of aluminum doors and windows.
The latest improved linear bearing operation structure and complete product structure.
Precision machining of linear guide rail makes the milling cutter move stably and flexibly and operate easily.
The advanced milling cutter chuck is selected to match the imported finishing spindle, which makes the milling cutter clamping simple and convenient.
Excellent air-oil filter atomization cooling system makes milling effect better.
|
Power supply |
380V/50Hz |
|
Total motor power |
1.5kW |
|
Motor speed |
12000r/min |
|
Operating pressure |
0.6~0.8MPa |
|
Motor shaft diameter |
Ф6mm |
|
Number of milling cutter |
Ф12mm |
|
Tool feed stroke |
1650mm |
|
Open tenon |
110mm |
|
Worktable dimension |
300×100mm |
|
Tool adjustment stroke |
Crosswise80mm |
|
Longitudinally280mm |
|
|
Overall dimension |
3000×1000×1500mm |
|
Weight |
About 300kg |
