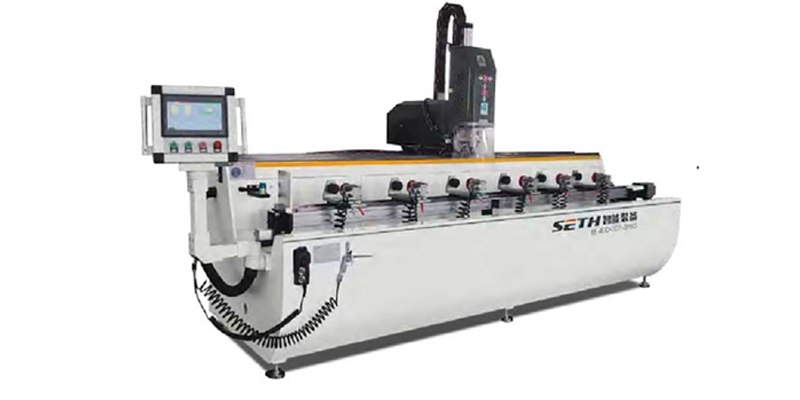

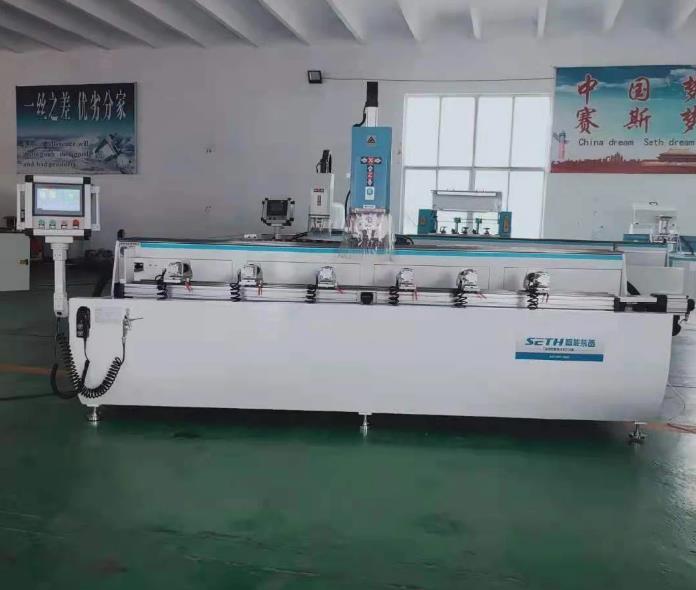

This machine is designed for processing round holes, slots, keyhole etc on aluminum profile, window-door and curtain wall industry, it is also suitable for processing milling, chamfering,engraving plane surface and other procedure.
Main spindle adopt air-cooling electric main axis, 3kW power, 0~18000r/ min , have the function of high precision, high safety and high reliable. Adopt Taiwan SYNTEC CNC control system. Have professional CAD- CAM programming software. It can transform processing G code automatically, have the function of easy operation, high efficiency and lower labor intensity.

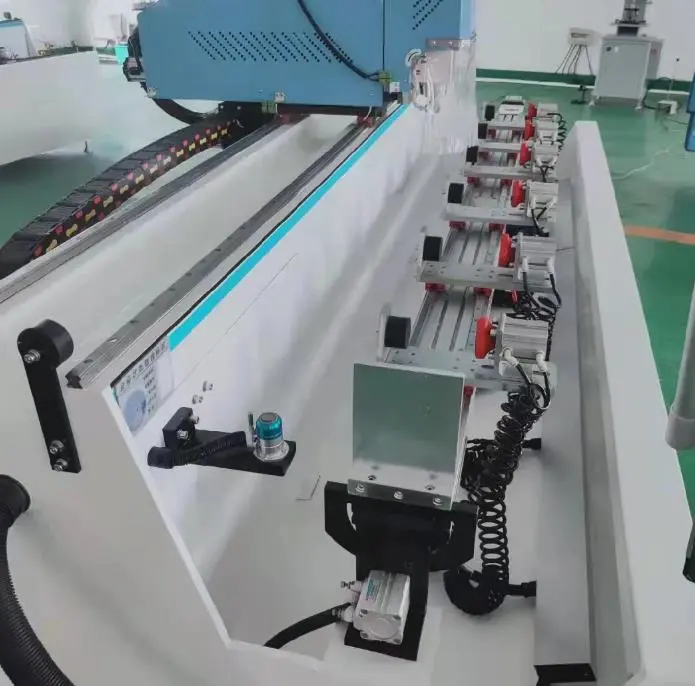

Imported guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the precision of whole machine.
|
Power supply |
380V/50Hz |
|
Air pressure |
0.5~0.8MPa |
|
Total power |
13.5kW |
|
Main axis power |
S6: 9.6kW S1: 8.0kW |
|
Max rotary speed |
24000r/min |
|
X-axis longitudinal travel |
4000mm |
|
Y-axis transverse travel |
640mm |
|
Z-axis vertical travel |
440mm |
|
X-axis speed |
50m/min |
|
Y-axis speed |
15m/min |
|
Z-axis speed |
15m/min |
|
Overall dimension |
5630×2780×2500mm |
|
Weight |
About 2100kg |
